Hot Sale Digital X-Ray-Detecting-Machine Equipments X-Ray Metal Detection Machine FXR-6035K100
X-ray Inspection System for Packaged Goods
FXR60 series Xray Inspection System is suitable inspect large products just as box and carton.
• Safe and reliable : X-Ray leakage is less than 1μ Sv/hour,complying with FDA and CE standard. Radiation less than 1 Gy, very safe for food.Designed complete shielded structure, prevent leakage accident.
• Intuitive operation interface:17 inches full colour touch screen,easy to use.Auto-analysis on inspected product,simple to set up inspecting parameter.Auto-save inspection photos, easy totrack and control.
• Easy cleaning and maintenance: Detachable structure makes cleaning easy.Waterproof washdown construction, IP66 for detectingtunnel, IP54 for rest of the body.
• Strong adaptability to the environment:Germanair-conditioner ensure the machine can work in low and high temperature in foodindustry.Sealingsystem to avoid water and dust.High-performancedehumidifier can work in 90% humid environment.
• High configuration and stability:Main components are first class brand toensure the stability and working lifetime.
| Model | FXR-2417K100 | FXR-4017K100 | FXR-5026K100 | FXR6035K100 |
| X-Ray Tube | 150W 100KV | 210W 100KV | 350W 100KV |
| Conveyor Size | Width | 240mm | 400mm | 500mm | 600mm |
| Height | 170mm | 170mm | 260mm | 350mm |
| Sensitivity | Stainless steel ball φ0.3mm,Stainless steel wire φ0.2*2mm |
| Conveyor Speed | 10～70m/min |
| Display Screen | 17inches colour touch screen |
| Interface | LAN Port,USB Port |
| Environment | Temperature:-10℃～40℃(with on-board air conditioner), Humidity:30%～90%(equipped with dehumidifier) |
| X-Ray Emission | ＜1μSv/hour |
| X-Ray Protection | Light weight lead-free soft curtains at tunnel |
| Reaction to defective | Sound and indicator, stopping machine, rejector |
| Power | AC220V±10%50Hz(60Hz)1.5kVA Max |
| Waterproof | IP66 |
| Body Material | Stainless Steel |
1. Are you manufacturer or trader ?
A:We are manufacturer, we have own factory in China, integrated with R&D, Production, Selling.
2,How to choose the most suitable products ?
A:Our professional team will give you the best suggestion as long as you tell us what kind of food you need to check and the required specification.
3,What is lead time of this products ?
A: The lead date is about 20-25 days.
4,Can you provide special design and configuration for us ?
A:Customized production available, special production available as percustomer drawing.
5,How to install and use the product ?
A: The product is shipped with an operating instructions and video of English version.
6,How many years warranty for this product ?
A: We can give 1 year warranty for machine.
7,How about your after-sale service ?
A: Within 1 hour email response for machine issues and within 4 hours offer for machine trouble shooting solution. Fast and in time contact fortechnical support via live chat tool group. (WA, Viber, WeChat, etc.) Fastest courier delivery for the spare parts once confirmed the problems caused byparts.
Overseas engineer deployment available if necessary.
Product Tags:
|
|

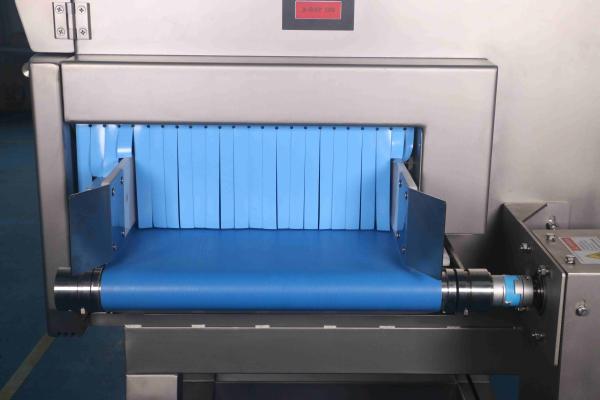

Fully Automatic Food X Ray Machines Images
|
